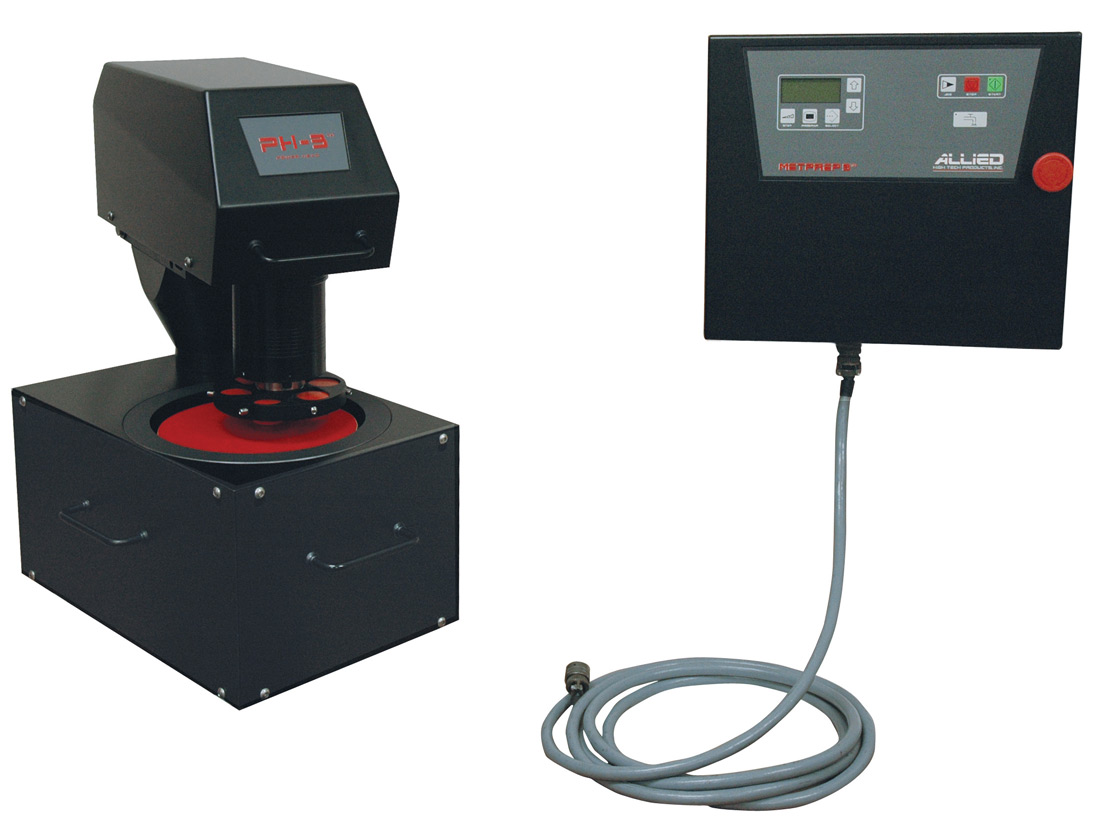

The MetPrep3™/PH-3™ Glove Box grinder/polisher for hot/glove-box environments is a powerful system for semiautomatic operation, ideal for low to high volume sample preparation requirements. It is designed to withstand various glovebox environments (i.e., alpha-radiation inert) and has an overall reduced size to fit through most glove box portholes. Critical components of the machine have been removed to an external (remote) control box. Removable cover/side plates allow easy access for serviceability.
Intuitive menu navigation with a user-friendly touchpad interface and backlit LCD make them easy to use and program. The microprocessor-based system allows up to 25 programmable steps, including parameters for platen speed, comp/contra rotation (sample holder/platen), cycle time, fluid selection, sample force (LbF or N), sample rotation speed, water rinse, and force reduction (on/off, %)
Either aluminum or magnetic platens may be used with any plain/adhesive-backed or magnetic system disc.
BrochureMore Views
Features
MetPrep 3™
| Touch-pad switches control all functions | External control box protects critical components | |
| Removable side plates allow easy access for serviceability | Reduced size fits through 14" diameter port-hole (some assembly required "in box") | |
| Programmable up to 25 polishing steps, including parameters for platen speed, comp/contrarotation (sample holder/platen), cycle time, fluid selection, sample force (LbF or N), sample rotation speed, water rinse and force reduction (On/Off, %) | Quick-change platen design, anodized to resist wear and corrosion | |
| Variable platen speed: 40-600 RPM (10 RPM increments) | Clockwise/counterclockwise platen rotation | |
| 0.25 HP (190 W) motor with durable reduction gearbox for constant high-torque output | Variable platen jog speed: 40-600 RPM (10 RPM increments) | |
| Stable aluminum/stainless steel construction | Variable cycle time: 0-120 minutes (15 second increments) | |
| Emergency shut-off switch | Corrosion/impact resistant cover | |
| Dimensions: 13" W x 19.5" D x 22" H (300 x 495 x 559 mm) |
Weight: 120 lb. (54 kg) |
PH-3™ Power Head
| Unique tilt-up feature allows easy access to platen and holder | Soft-start and force reduction control | |
| Simple push/pull attachment and removal of holders | Quick-lock system allows sample holder positioning across entire platen surface | |
| Variable rotation speed: 0-150 RPM (10 RPM increments) | 0.125 HP (95 W) motor with durable reduction gearbox for constant high-torque output | |
| Comp and contra rotation | Central force sample preparation of up to 6 samples, adjustable from 5-50 lb. in 1 lb. increments (22-219 N in ~5 N increments) | |
| Individual force sample preparation of up to 3 mounts, adjustable from 0-16 lb. in 1 lb. increments (0-70 N in ~5 N increments) | Six (6) month warranty | |
| Designed & manufactured by Allied in the USA | Special Lead Time: 12 - 16 weeks |
| Item # | Description | Qty | |
|---|---|---|---|
| 5-2500-LA | MetPrep 3™ Grinder/Polisher with PH-3™ Power Head for Glove Box, 115 V 50/60 Hz 1 Phase Includes: Splash Ring and 18' Cable with Standard Connectors |
Product Accessories
NOTE: Standard/Magnetic platens, Sample Loading Fixtures & Holders are SOLD SEPARATELY. Please choose accessories from the list below to ensure a complete system is configured for quotation.
| Item # | Description | Qty | |
|---|---|---|---|
| 5-3301 |  Click to Enlarge » |
Sample Holder, Blank with Heating Stage, 140 mm | |
| 5-3330 |  Click to Enlarge » |
Sample Holder, (6) 25 mm - 1.25" Samples, Teardrop Central Force, for use with 8" (203 mm) or 10" (254 mm) platens | |
| 5-3340 |  Click to Enlarge » |
Sample Holder, (5) 25 mm - 40 mm Samples, Teardrop Central Force for use with 8" (203 mm) or 10" (254 mm) platens | |
| 5-3345 |  Click to Enlarge » |
Sample Holder, (3) 25 mm - 40 mm Samples, Teardrop Central Force for use with 8" (203 mm) or 10" (254 mm) platens | |
| 5-3361 |  Click to Enlarge » |
Sample Holder, (6) 25 mm - 1.25" Samples, Dual-Cavity Central Force for use with 8" (203 mm) or 10" (254 mm) platens | |
| 5-3380 |  Click to Enlarge » |
Sample Loading Fixture for 5-33XX Series Holders | |
| 5-3800 |  Click to Enlarge » |
Sample Holder, (3) Variable Diameter Mounts from 1” to 1.5" using corresponding Spacer Rings, Individual Force for use with PH-3™ Power Head | |
| 5-3835 |  Click to Enlarge » |
Sample Holder, (3) 1" (25 mm) Mounts, Individual Force for use with PH-3™ Power Head | |
| 5-3840 |  Click to Enlarge » |
Sample Holder, (3) 30 mm Mounts, Individual Force for use with PH-3™ Power Head | |
| 5-3845 |  Click to Enlarge » |
Sample Holder, (3) 1.25" (32 mm) Mounts, Individual Force for use with PH-3™ Power Head | |
| 5-3850 |  Click to Enlarge » |
Sample Holder, (3) 1.5" (38 mm) Mounts, Individual Force for use with PH-3™ Power Head | |
| 5-3855 |  Click to Enlarge » |
Sample Holder, (3) 40 mm Mounts, Individual Force for use with PH-3™ Power Head | |
| 5-3860 |  Click to Enlarge » |
Sample Holder, (3) 50 mm Mounts, Individual Force for use with PH-3™ Power Head | |
| 5-3865 |  Click to Enlarge » |
Sample Holder, (3) 2" Mounts, Individual Force for use with PH-3™ Power Head | |
| 5-3X35-40 |  Click to Enlarge » |
Individual Force Spacer Ring, for 1"/25 mm Mount for use with 5-3800 Sample Holder | |
| 5-3X40-40 | Click to Enlarge » |
Individual Force Spacer Ring, for 30 mm Mount for use with 5-3800 Sample Holder | |
| 5-3X45-40 | Click to Enlarge » |
Individual Force Spacer Ring, for 1.25" Mount for use with 5-3800 Sample Holder | |
| 5-3X50-40 | Click to Enlarge » |
Individual Force Spacer Ring, for 1.5" Mount for use with 5-3800 Sample Holder | |
| 5-2005 |  Click to Enlarge » |
Standard Platen, 8" (203 mm) | |
| 5-2005M |  Click to Enlarge » |
Magnetic Platen, 8" (203 mm) | |
| 90-208300 |  Click to Enlarge » |
Magnetic Base, 8" (203 mm), with Adhesive Backing | |
| 5-8100 |  Click to Enlarge » |
Platen Storage Cabinet for Platens, Discs or Cloths up to 12" (305 mm) Diameter | |
| 5-8105 |  Click to Enlarge » |
Aluminum Tray/Shelf |
