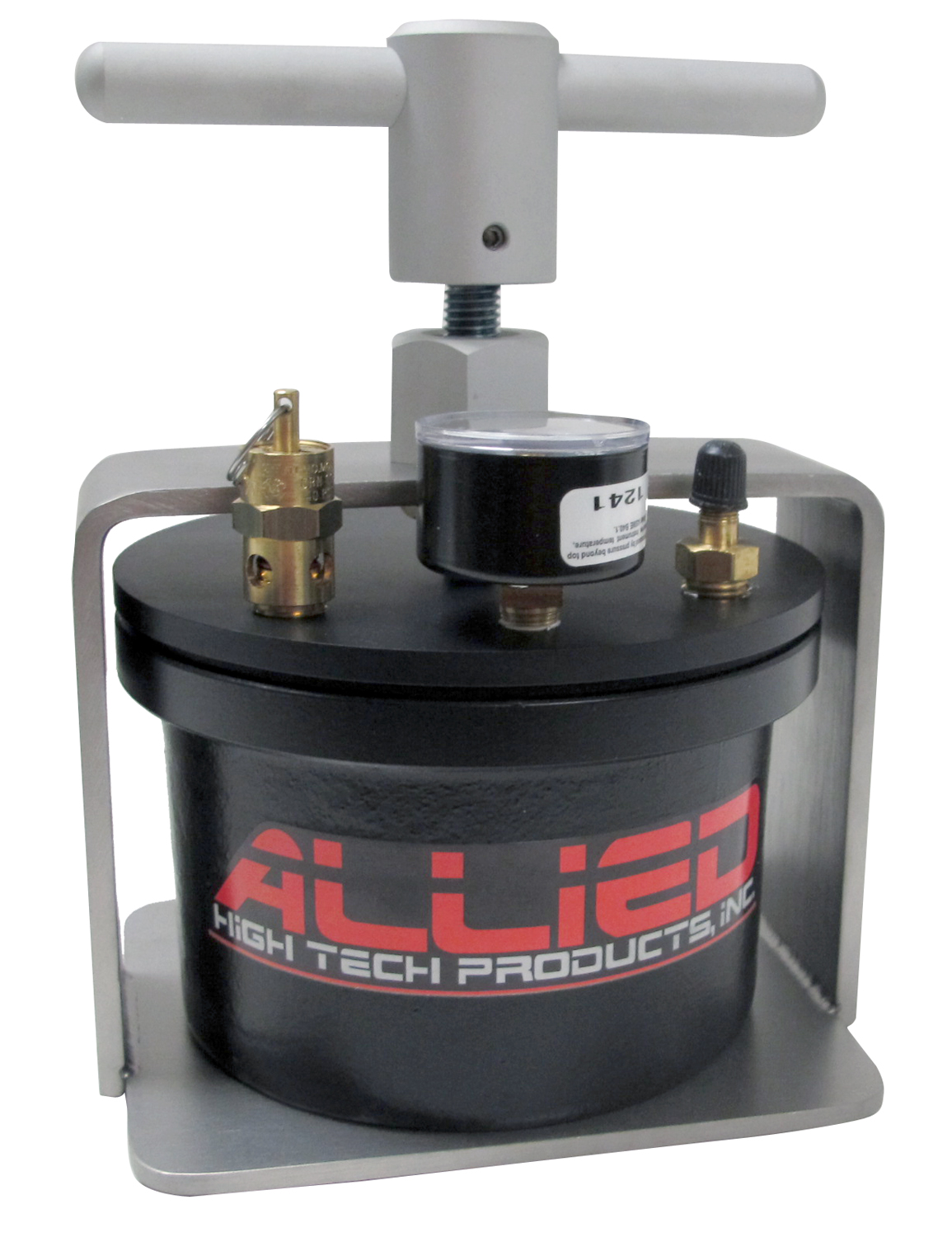

PC-100 Pressure Chamber

Mounting

The use of pressure with acrylics and epoxies prevents the formation of small bubbles (outgassing) caused by elevated exothermic temperatures during hardening. This also produces clearer mounts with better edge retention, improved adhesion and reduced shrinkage. Maximum rating: 35 psi (2.4 bar)

More Views

Features

Regulated, nominal operating pressure: 35 PSI (2.4 bar)   Chamber Dimensions: 4.75" (120 mm) Diameter x 3.75" (95 mm) Depth
One (1) year warranty   Overall Dimensions (including bracket): 6.5" W (164 mm) x 6" (150 mm) Chamber Diameter x 8.5" H (214 mm)
Weight: 8 lb. (3.6 kg)   Designed & manufactured by Allied in the USA
Item # Description Qty
175-10005 Click to Enlarge » PC-100 Pressure Chamber
