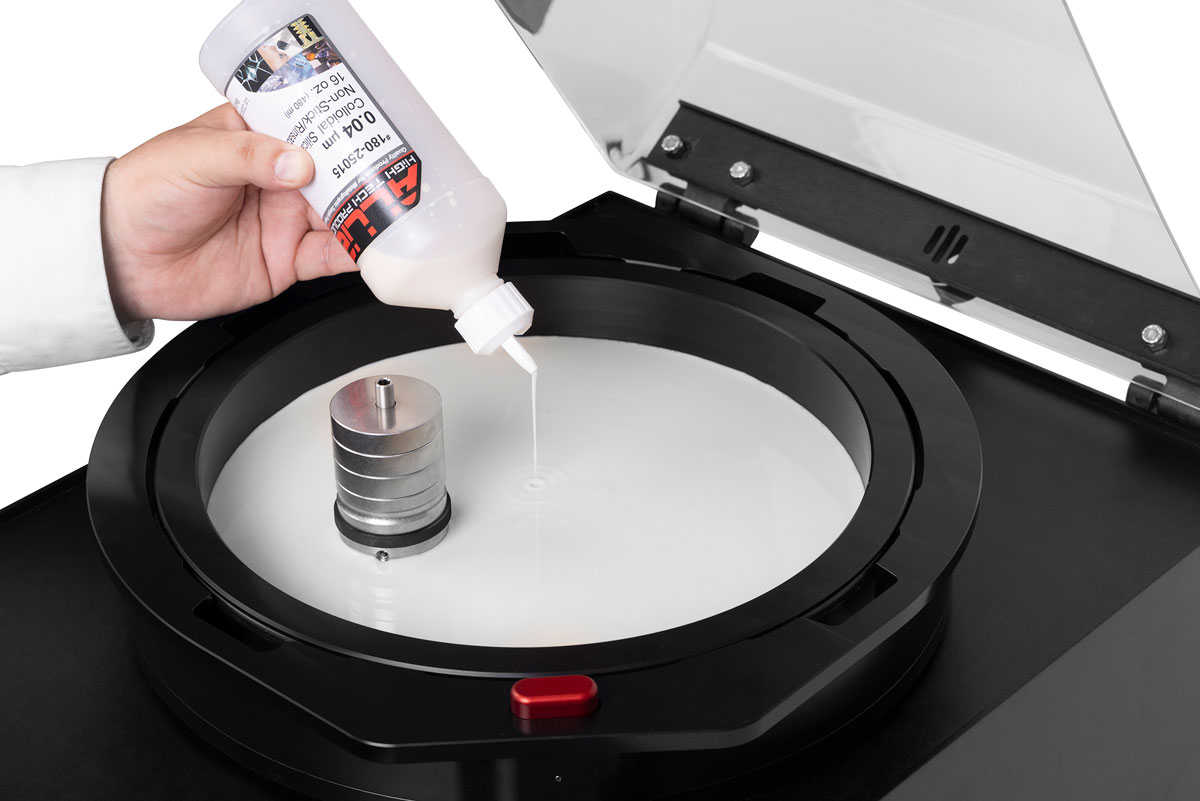

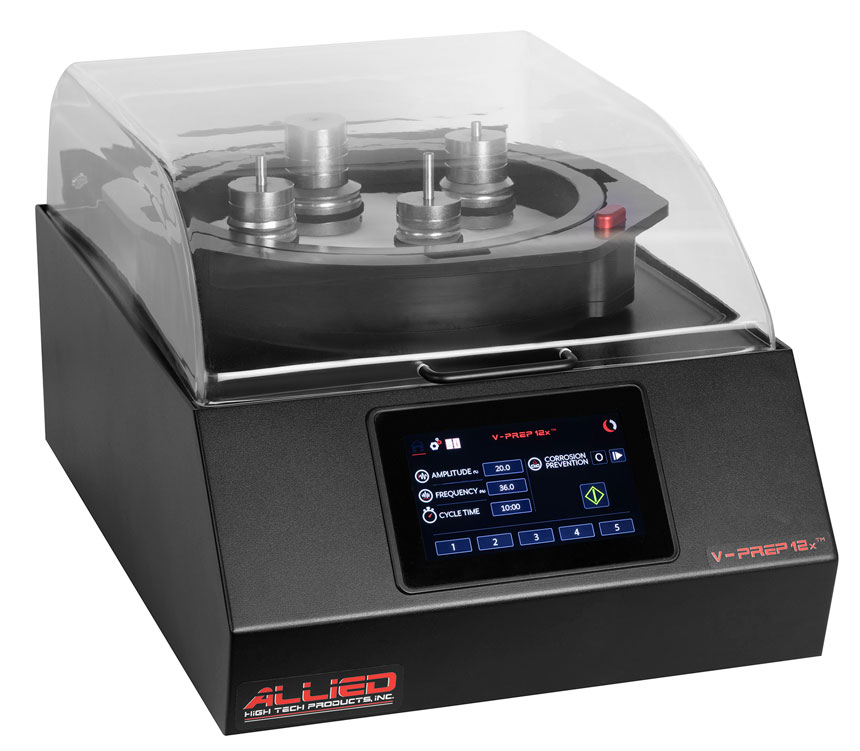

The V-Prep 12x™ is a vibratory polisher designed for deformation-free preparation of metallurgical samples. Utilizing a vibratory motion, it gently polishes mounted or unmounted samples without manual pressure—ensuring uniform, repeatable results and making it ideal for EBSD and other advanced analyses.

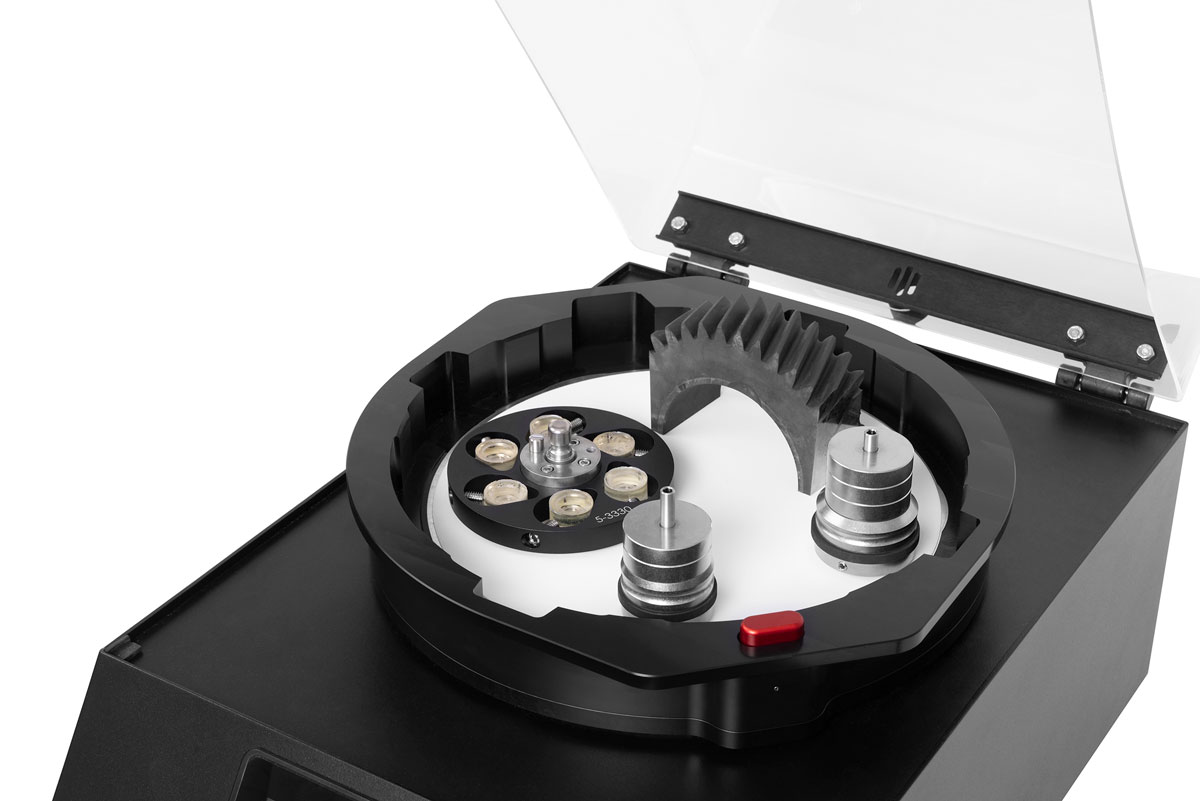

The corrosion resistant bowl can be configured for either ferromagnetic or adhesive backed polishing cloths and can be easily removed and replaced for cleaning.
The intuitive touchscreen interface simplifies operation with five (5) user-defined preset buttons allowing quick and easy parameter selections.
Compact, durable and engineered for ease of use, the V-Prep 12x™ delivers consistent results.
BrochureMore Views
Features
| Advanced Turbo Mode increases rotation speed | 7" color LCD touchscreen with keypad entry to control all functions | |
| Store and recall up to five (5) adjustable presets, including settings for amplitude, frequency, cycle time and corrosion prevention | Corrosion/chemical resistant, quick-change bowl allows rapid removal and replacement for cleaning | |
| Ferromagnetic interface inside the bowl allows both ferromagnetic (MAG) and adhesive-backed polishing cloths to be used | Clear cover featuring exhaust port and friction hinges to hold open | |
| Sample holder capacity up to 21 | Inside bowl dimension of 12" (305 mm) | |
| Variable frequency range: 60 – 140 Hz | Variable amplitude range: 1 – 100% (Turbo mode: 1 – 120%) | |
| Cycle time range: 5 minutes to 72 hours | Dimensions: 17" W x 26.25" D x 14.75" H (430 x 665 x 373 mm) | |
| Weight: 173 lb. (78.4 kg) | Exhaust port size: 1.25”/32mm OD | |
| Designed & manufactured by Allied in the USA | Two (2) year warranty |
| Item # | Description | Qty | |
|---|---|---|---|
| 5-6375-115 | V-Prep 12x™ Vibratory Polisher with 12" Platen, 100-125 V | ||
| 5-6375-230 | V-Prep 12x™ Vibratory Polisher with 12" Platen, 200-240 V |
Product Accessories
| Item # | Description | Qty | |
|---|---|---|---|
| 5-6310 |  Click to Enlarge » |

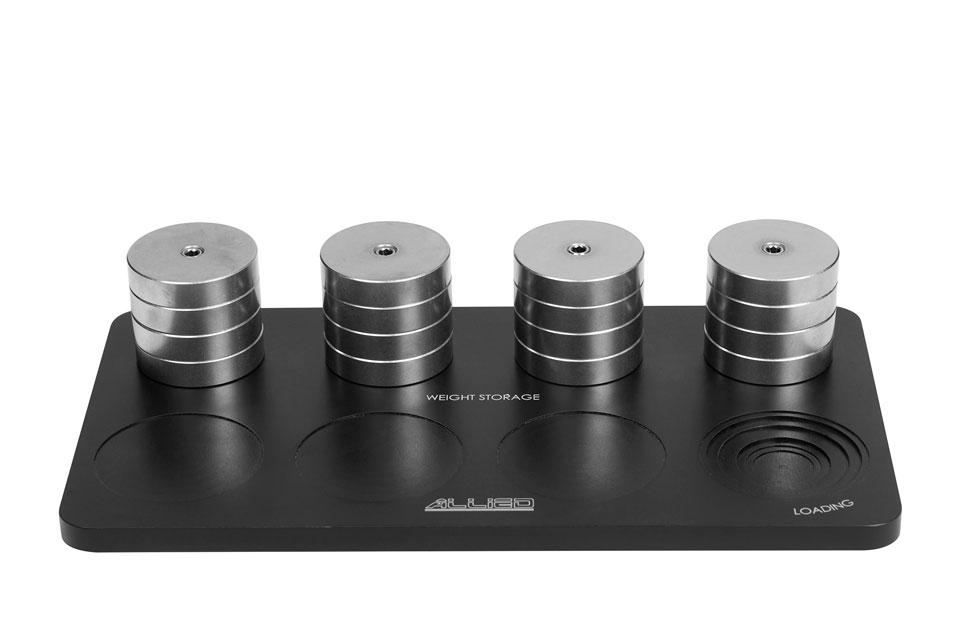

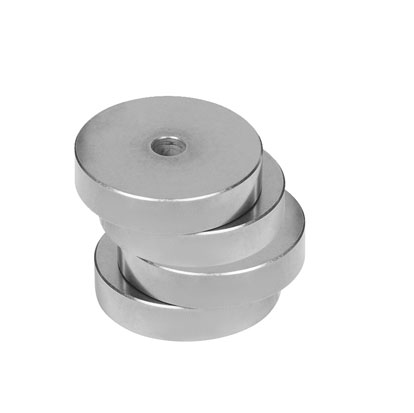

Weight Set for V-Prep 12x™ Sample Holders (Pk/4) | |
| 5-6315 |  Click to Enlarge » |

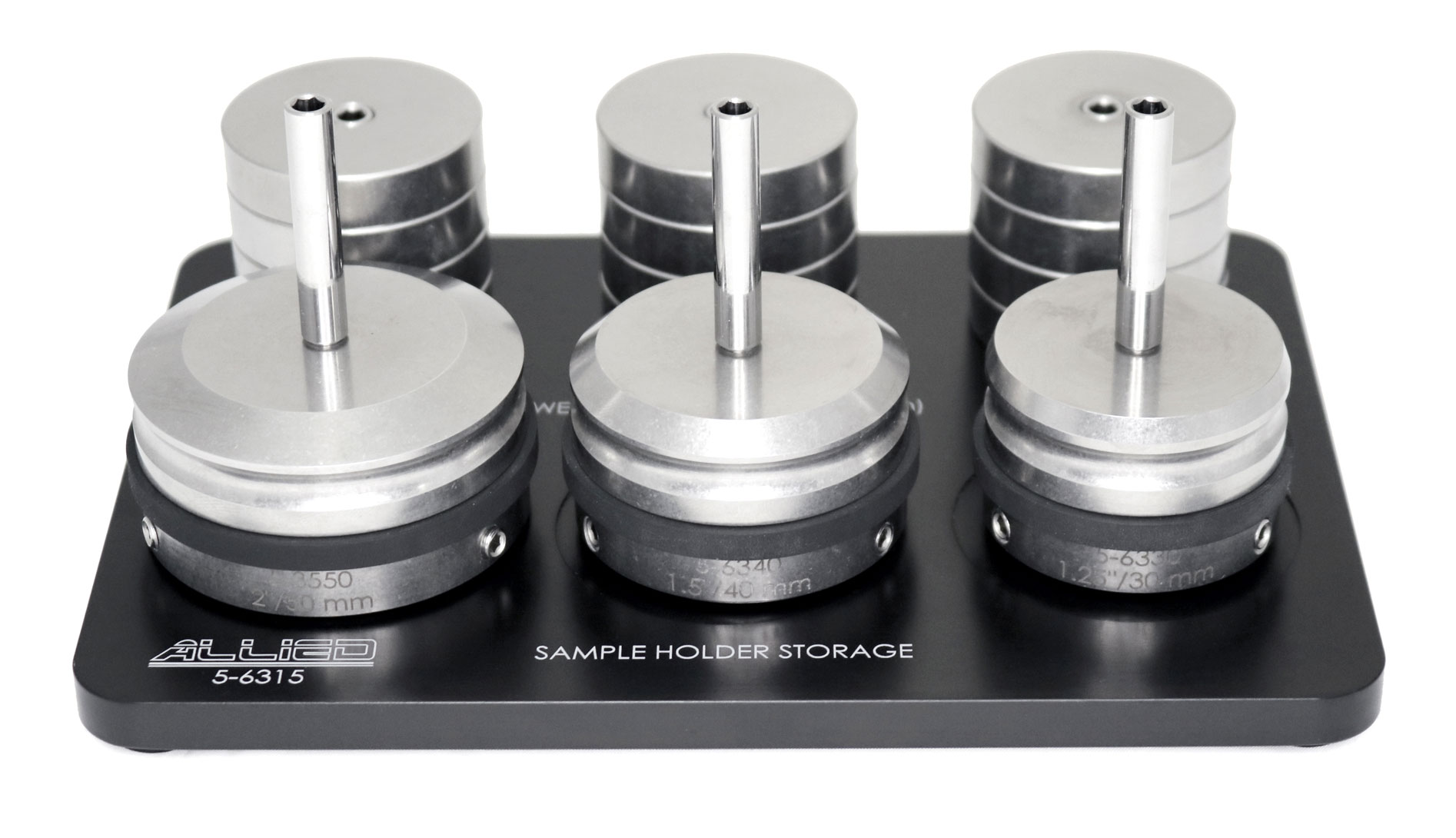

Sample Holder Storage Fixture for V-Prep 12x™ | |
| 5-6320 |  Click to Enlarge » |

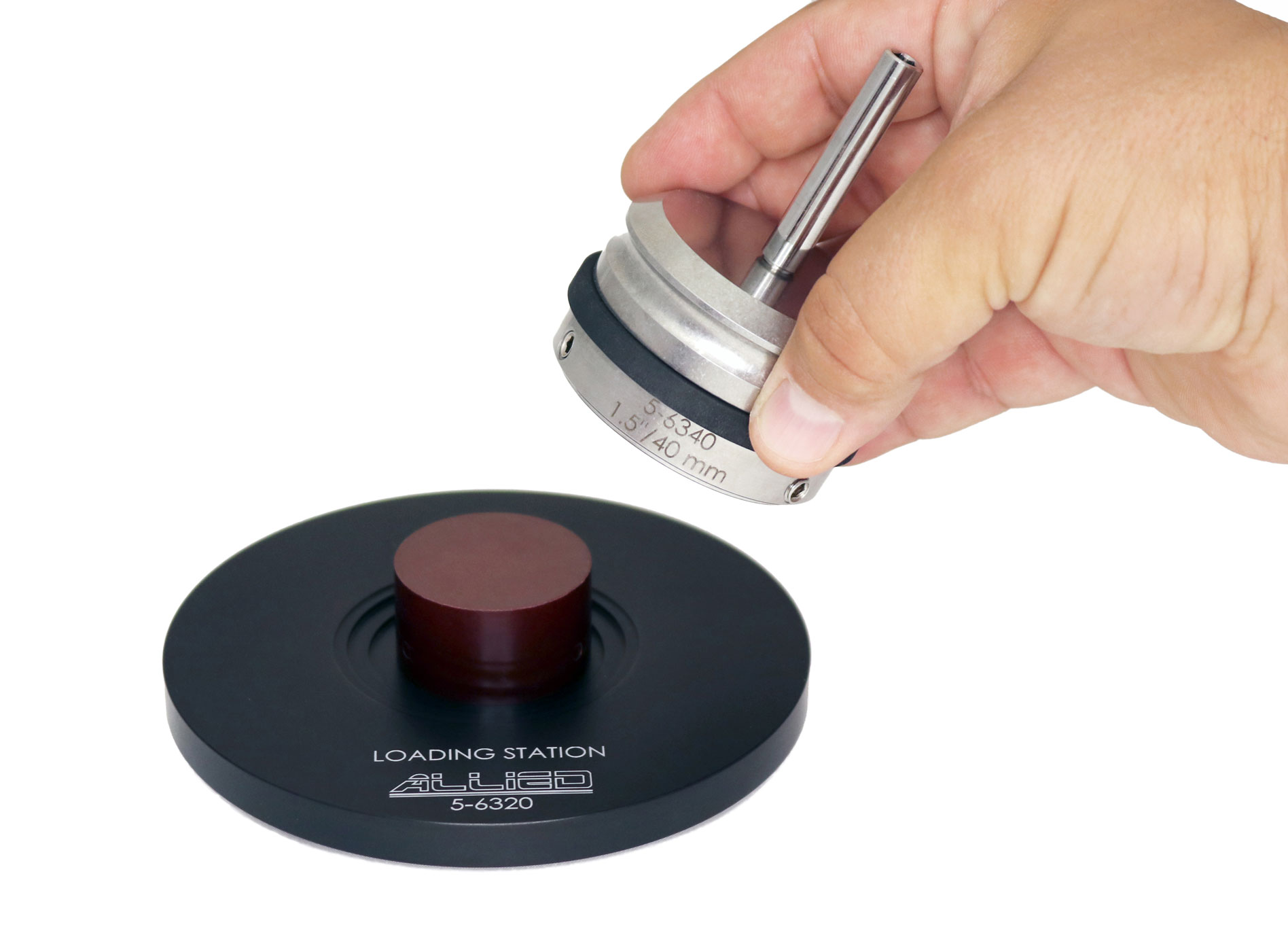

Sample Loading Fixture for V-Prep 12x™ | |
| 5-6325 |  Click to Enlarge » |

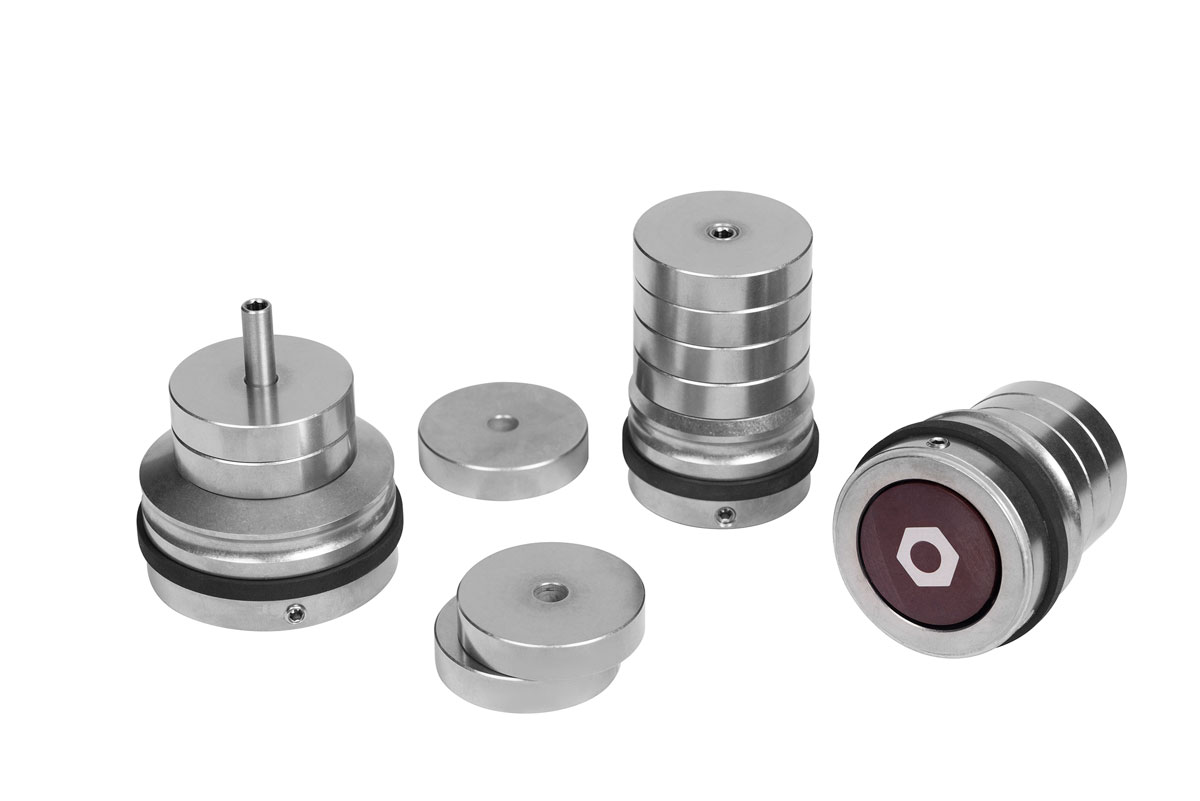

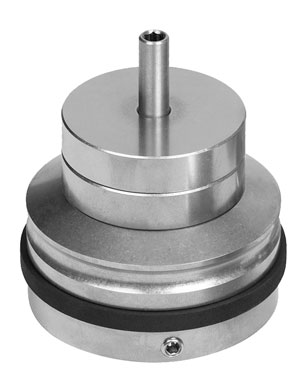

Sample Holder, 1"/25 mm Capacity for V-Prep 12x™ Includes #5-6310 Weight Set for V-Prep 12x™ Sample Holders | |
| 5-6330 | Click to Enlarge » |
Sample Holder, 1.25"/30 mm Capacity for V-Prep 12x™ Includes #5-6310 Weight Set for V-Prep 12x™ Sample Holders | |
| 5-6340 | Click to Enlarge » |
Sample Holder, 1.5"/40 mm Capacity for V-Prep 12x™ Includes #5-6310 Weight Set for V-Prep 12x™ Sample Holders | |
| 5-6350 | Click to Enlarge » |
Sample Holder, 2"/50 mm Capacity for V-Prep 12x™ Includes #5-6310 Weight Set for V-Prep 12x™ Sample Holders |
