Recirculating Filtration System

Semi-Automatic Grinders/Polishers

This recirculating filtration system allows up to 3-stage filtering down to 2 microns and is mounted in a durable cabinet that supports Allied grinding/polishing machines. The environmentally friendly filtration system saves up to 1/2 gallon of water per minute with quick-change stainless steel filters that are re-usable and cleanable. System includes cabinet/stand with a roll-out reservoir with 7-gallon (26.5 L) capacity and pull-out storage drawer.


More Views

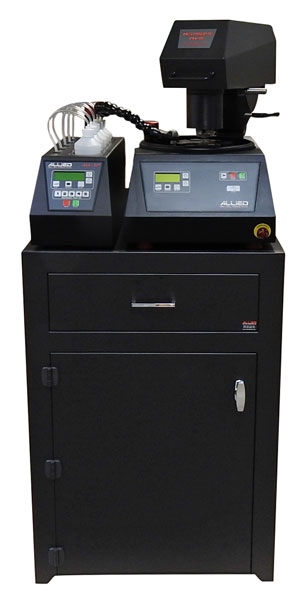

Cabinet mounted filtration system with quick-change filters   Cabinet/Stand supports all Allied powerhead & manual grinding/polishing machines
Configurable with up to 3 in-line filtration stages   Accepts reusable stainless steel or disposable polymer filters (100-410XX series)
Roll-out reservoir with 7-gallon (26.5 L) capacity   Pull-out storage drawer
115/230V usage - wired for destination country voltage prior to shipment   Environmentally friendly - saves up to 0.5 gallon (1.9 L) of water per minute
Designed & manufactured by Allied in the USA   Two (2) year warranty
Item # Description Qty
100-40020 Recirculating Filtration System, with Grinder/Polisher Control, 115V/230V/ 60 Hz 1 Phase includes (1) 100-41000 Filter Housing Assembly

Product Accessories

NOTE: Additional filter housing assemblies and filters are SOLD SEPARATELY

Item # Description Qty
100-41000 Single Stage Water Filter Housing Assembly - For Use with 100-410XX Series Filters
100-41001 Polymer Filter, 1 µm, 2-5/8 OD x 9-3/4" L, (Pk/5)
100-41005 Polymer Filter, 5 µm, 2-5/8 OD x 9-3/4" L, (Pk/5)
100-41010 Polymer Filter, 10 µm, 2-5/8 OD x 9-3/4" L, (Pk/5)
100-41020 Polymer Filter, 20 µm, 2-5/8 OD x 9-3/4" L, (Pk/5)
100-41050 Polymer Filter, 50 µm, 2-5/8 OD x 9-3/4" L, (Pk/5)
100-41075 Stainless Steel Reusable Filter, 75 µm, 2-5/8 OD x 9-3/4" L
